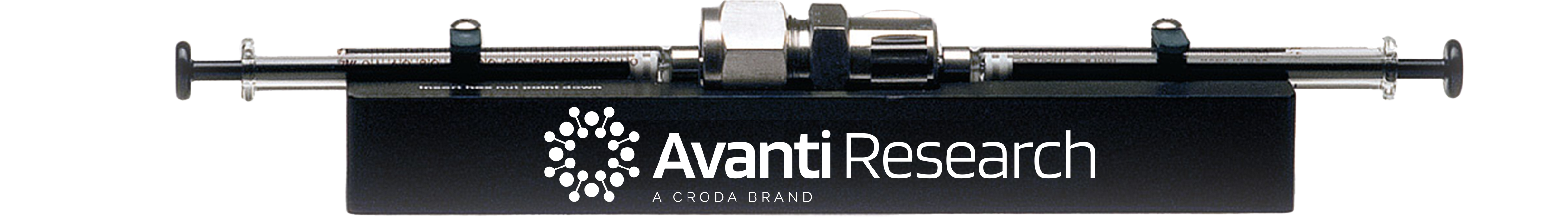

The Mini Extruder Pro is a compact, easy-to-use tool that allows researchers to prepare uniform unilamellar vesicles (liposomes) using a controlled extrusion process. It is designed for efficiency, reliability, and flexibility across a wide range of lipid compositions..jpg?la=en-GB&hash=02AA02E7E3C272DDFBCCCFFD97D5102E)
Convenient
-
Quickly prepare unilamellar vesicles through a simple extrusion process
-
Easy to assemble, operate, and clean
-
All wetted parts can be cleaned rapidly, minimizing downtime between lipid formulations
-
Produces uniform vesicles without solvents or detergents
-
Vesicle size is easily controlled by selecting the appropriate polycarbonate membrane
Affordable
The Mini Extruder Pro is constructed of stainless steel and Teflon; the new design will provide years of trouble-free service and is available for a fraction of the cost of alternative options.
-
Constructed from durable stainless steel and Teflon for long‑term, trouble‑free use
-
Available at a fraction of the cost of alternative options
-
Replacement parts are readily available from Avanti Research

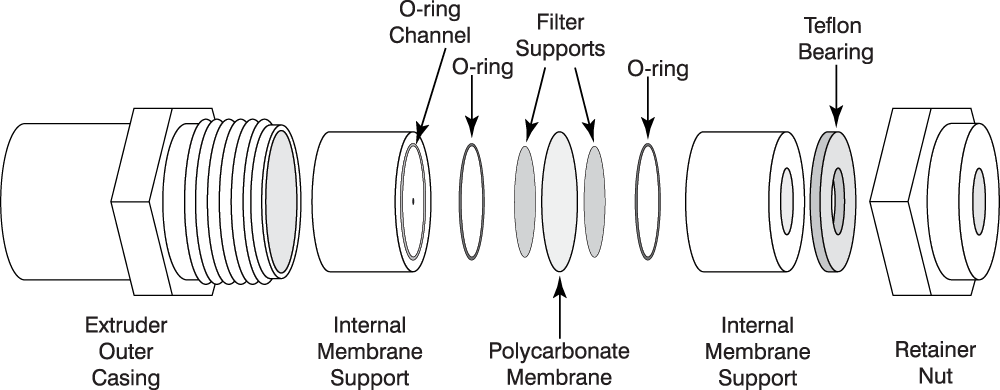

Complete set includes:
-
Mini Extruder Pro body
-
Stainless steel extruder outer casing
-
PTFE Internal Membrane Support (2)
-
O-ring (2)
-
Stainless steel Retainer Nut
-
Base
-
2 gas-tight 1mL syringes
-
100 0.1µm polycarbonate membranes
-
100 filter supports
Flexible
-
Can be placed directly on a hot plate for rapid temperature control
-
Base acts as a heating block allowing for extrusion at elevated temperatures. Ideal for lipids with phase transition temperatures above room temperature
-
Capable of producing unilamellar liposomes ranging from ~30 nm to 5 µm, depending on formulation composition and membrane selection
-
Compatible with a wide variety of lipid compositions
Reliable Performance
-
Vesicle size distribution depends on the number of passes through the membrane
-
Hydrated lipids initially form large, multilamellar vesicles
-
With repeated extrusion: Early passes yield a broad or bimodal size distribution
-
Additional passes yield a narrow, uniform particle size distribution
-
At least 11 passes through the membrane are recommended for most lipid systems

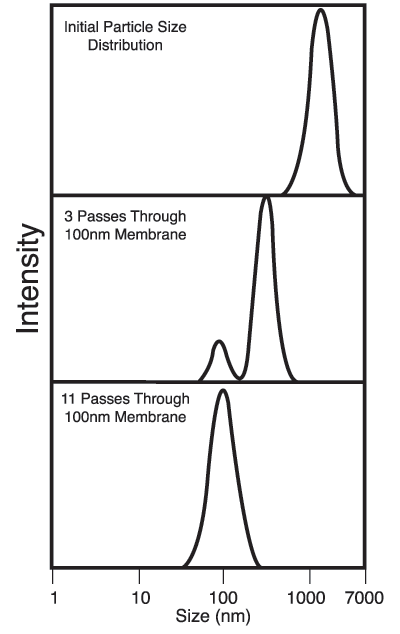

Hydrated lipid will initially form large, multilamellar vesicles. After the initial pass through a membrane, the particle size distribution will tend towards bimodal. After sufficient passes through the membrane, a unimodal, normal distribution is obtained. A minimum of eleven passes through the extruder membrane is recommended for most lipids.

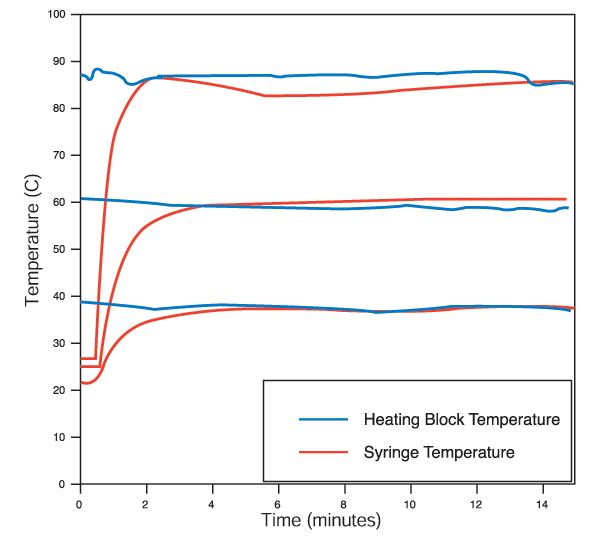

Placing the heating block assembly on a hot plate achieves rapid temperature control for lipids that have transition temperatures above room temperature.
